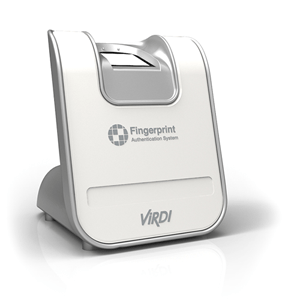

FOH04 FBI PIV-certified single finger Live Scanner for identification

Superior Algorithm

Fast and accurate algorithm for reading fingerprints

Advanced optical system for getting high quality fingerprint images

الوصف

FOH04

FBI PIV-certified single finger
Live Scanner for identification

Wide Input Area

0.8” fingerprint sensing area

FBI-PIV Certified Scanner

Superior Algorithm

Fast and accurate algorithm for reading fingerprints

Advanced optical system for getting high quality fingerprint images

Features

Wide 0. 8 inch Fingerprint Input Window

Fast and Accurate Algorithm

Demo Program and SDK

Cost-effective Fingerprint Scanner

Patented Live & Fake Finger Detection

·Optical sensor and algorithm detect fake fingers
(paper, film, silicone, rubber and gelatin)

FBI Certification

·FBI IQS PIV

International Standard Image Format and Interface

·ISO/IEC 19794-2:2005, ISO/IEC 19794-4:2005
·ANSI INCITS 378-2004
·WSQ Fingerprint Image Compression
·NFIQ(NITS Fingerprint Image Quality)

Specification

Detail Specification FOH04

Fingerprint TypeSingle FlatOperating Temperature -20°C ~ 60ºC
Resolution500 dpi / 256 grayOperating Humidity10 90%, non-condensing
Speed15 frames per second(fps)Operating VoltageUSB BUS Power (Max 5V)
Platen Size21 x 21 mmDimension74 x 92 x 84 mm
Sensing Area42 x 42 mmCertificationKC, CE, FCC
Operating System Microsoft Windows
