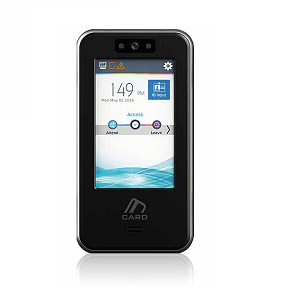

AC-1100 Card Terminal with Bluetooth

4. 0 inch Color Screen LCD & GUI

Intuitive UI , simplifies operation



Card Terminal with Camera
Bluetooth Mobile Key

4. 0 inch Color Screen LCD & GUI

Intuitive UI , simplifies operation


Bluetooth Support

·Bluetooth-enabled mobile key solution
·UNIS-B : App for administrators
·V-CARD : App for mobile key users

4. 0” Touchscreen LCD & GUI

·Large screen and intuitive UI for easy use

Multi-Language Support

Open Supervised Device Protocol (OSDP)

·communication protocol support that allows peripheral devices to interface with control panels or other security mgmt. systems

VoIP Supported

·IP BX Network(SIP)

Face Detection

·Image capture for higher security

Built-in Camera / W FLASH

·Image acquisition during access
·VGA Color

Easy Data Transfer (USB ON-THE-GO)

·Easy data transfer and firmware upgrade by using USB


Detail Specification AC-1100

CPU1 GHZ Single coreMemory512MB RAM + 8GB eMMC(NAND)
LCD4 Inch Color Touch LCD(Resistive)Max Users200,000
Power Consumption12V, Max 580mA (7W)
CommunicationTCP/IP, RS232, RS485 Wiegand In/Out,
Wireless LAN(optional), Bluetooth
Log Capacity1,000,000 / 15,000 Images
Dimension80 x 153 x 18.2 mmCertificatesKC, CE, FCC, RoHS
RFID Card Option125kHZ-EM / 13. 56MHz Smart Card / Felica/ HID prox, SAM Slot
