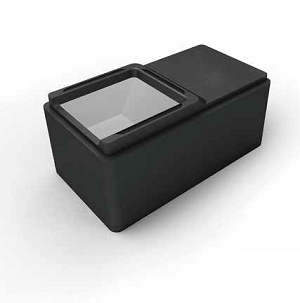

NSCAN-FA USB Fingerprint Scanner / FBI Certified

الوصف

NSCAN-FA

USB Fingerprint Scanner / FBI Certified

Features

Demo Program and SDK

International Standard Image Format and Interface

·ISO/IEC 19794-2:2005, ISO/IEC 19794-4:2005
·ANSI INCITS 378-2004
·WSQ Fingerprint Image Compression
·NFIQ(NITS Fingerprint Image Quality)

Patented Live & Fake Finger Detection

·Optical sensor and algorithm detect fake fingers (paper,film, silicone,rubber and gelatin)

FBI Certification

·FBI IQS PIV

Specification

Detail Specification NSCAN-FA

Fingerprint TypeSingle FlatOperating Temperature0℃ ~ 50℃
Resolution500 dpi / 256 grayOperating Humidity10 ~ 90%, non-condensing
Speed30 frames per second (fps)Operating VoltageUSB BUS Power(Max 5V, 280mV)
Platen Size26 x 27 mmDimension47. 2 x 34.4 x 81. 0 mm
Sensing Area18 x 23mm(0. 71” x 0. 91”)Dust Water ResistanceIP43
 Image Quality StandardsFBI IQS PIVCertificationKC, CE, FCC
 Image format raw Operating SystemMicrosoft Windows
